OptiMIC

Zoom microscope


Microscopes are instruments for obtaining an enlarged image of a small object. They are equipped with a lens and an eyepiece that allows the object to be observed with the naked eye. Microscopes are used for centering, adjustment and measurement.

The main advantages are durability, reliability and low purchase cost.

N°: MA 130W-Z1-014

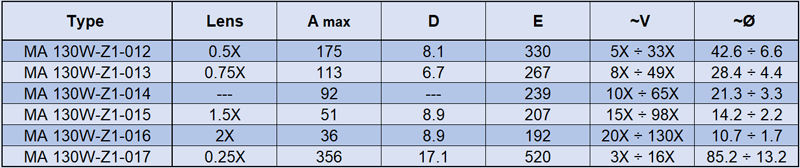

Specifications:

  • Real picture.
  • Observation angle 120°.
  • Steel tube Ø39.6 g6.
  • Reticles available: R 2-1-4-2, R 9a and R7

    (no calibration of the reticle possible).

  • Magnification adjustement by rotation.
  • Storage case available upon request.
  • Weight approx. 770g.


Other reticles to choose from

R 9a and R 7





LED incident illuminators

MA 114-033



LED transmitted illuminators

MA 212-92



Displacement with geared drive

MA 153-5-027



Adapter ring

85-177



Additional lens

POC-101



Quick-displacement column

MA 331-S4



Quick-displacement column

MA 333-S4



Positioning 3 axis 50x100mm

MA 159-012-03 / 13



Positioning 3 axis 100x150mm

MA 159-012-07 / 17

2D layout

User's manual

User's manual (zoom-optics)

3D files (step)
