Positioning 3 axis 100x150mm


Device used to position an optic or a tool.

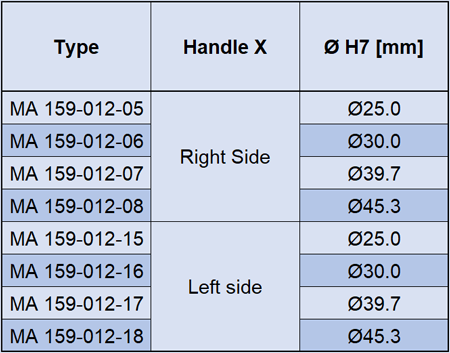

N°: MA 159-012-...

Specifications:

  • X-axis handle on the left or right.
  • With Heidenhain rulers
    (also available without rulers).
  • Locking screws on each axis.
  • Ball bearing carriages.
  • Weight: 8.6kg.





∙∙∙ Click here for more information or to request an offer ∙∙∙



Digital display Mx100

MCA-300-101





Digital calculator Mx200

MCA-300-201





Base 300mm for cylindrical feet

MA 155-062-01





Base 200mm

MA 155-062-03





Handle

MA 155-062-30





LED transmitted illuminator

MA 212-95-041



Layout 2D

3D-Datei (step)
