Quick-displacement column


Column for MA 173 and MA 183 bases which is ideal for mounting special devices with microscope or video optics. This column solution is very stable and easy to mount on a base or a workbench.

N°: MA 333-S...

Specifications:

  • Geared drive adjustment ±20mm.

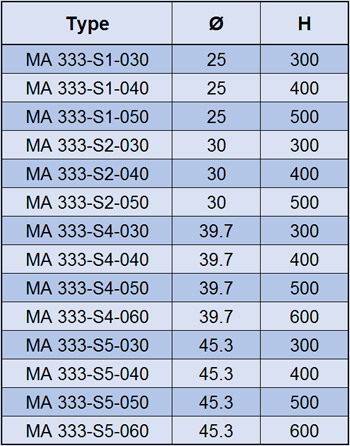

  • Several heights to choose from (see table below).
  • Several attachment Ø to choose from (see table below).
  • Spacing between column and optics 150mm.








Fine moving rack and pinion

MA 154-5...





Positioning flange (only for Ø25)

MA 155-026





Positioning flange (only for Ø30)

MA 155-027



2D layout (Ø25 & Ø30)

2D layout (Ø39.7 & Ø45.3)

3D file (step)
