OptiMIC

Microscope


Microscopes are instruments for obtaining an enlarged image of a small object. They are equipped with a lens and an eyepiece that allows the object to be observed with the naked eye. Microscopes are used for centering, adjustment and measurement.

The main advantages are durability, reliability and low purchase cost.

N°: MA 130GW-110

Specifications:

  • Real picture.
  • Observation angle 120°.
  • 360° goniometer and 5' vernier.
  • Steel tube Ø30 h5 x 110mm included.
  • Wide choice of reticles available.
  • Different interchangeable lenses to choose from.

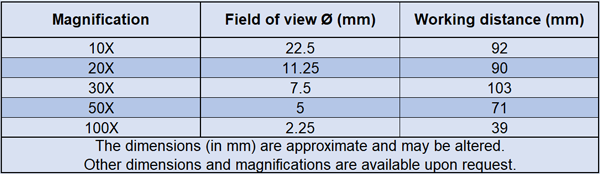

  • Standard magnification from 10X to 100X.
  • Storage case available upon request.
  • Weight approx. 1.3kg.


Other reticles to choose from

R ...





LED incident Illuminators

MA 114a-08



LED incident Illuminators

MA 212-95



90° prism

MA 123


Displacement with geared drive

MA 153-5-010



Quick-displacement column

MA 331-S2



Quick-displacement column

MA 333-S2



Positioning 3 axis 50x100mm

MA 159-012-02 / 12



Positioning 3 axis 100x150mm

MA 159-012-06 / 16
