OptiVID "zoom 12X"
Video optics, adapter 1.00X with LED coaxial illuminator
Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application. Zoom-optics allow you to quickly adapt the field of view to the required precision while guaranteeing a fixed focal length.
24" "All In One" monitor (PC included in the screen).
N°: MA 730E-Z2-06...

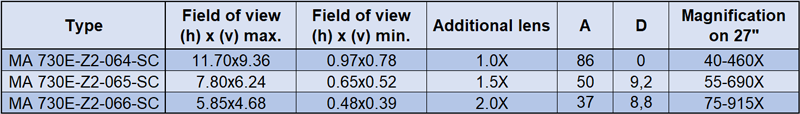

Specifications:
- Great flexibility in the analysis of the image thanks to the wide choice of software.
- Different interchangeable lenses to choose from.
- 1.3Mpx USB3.0 color camera.
- 12X zoom-optics (with 8 indexes)
- Attachment Ø45.3mm.
- Weight 2.6kg.
