Video measuring system

Versatile workshop measurement system with carbon fairing, featuring a highly stable Z-axis column and optimized ergonomics for capturing panoramic images via "stitching". It offers a wide range of optics with high-magnification zooms.

N°: MA 185-305

Specifications:

• Granit base.
• Manual X-Y table MA 145-15, range 150 x 70mm.

  Mechanical precision 0.003mm / 100mm.

  Heidenhain measuring scales (Display resolution: 0.001mm.

• Manual precision column, range 140mm.

  Mechanical precision 0.020mm / 100mm.

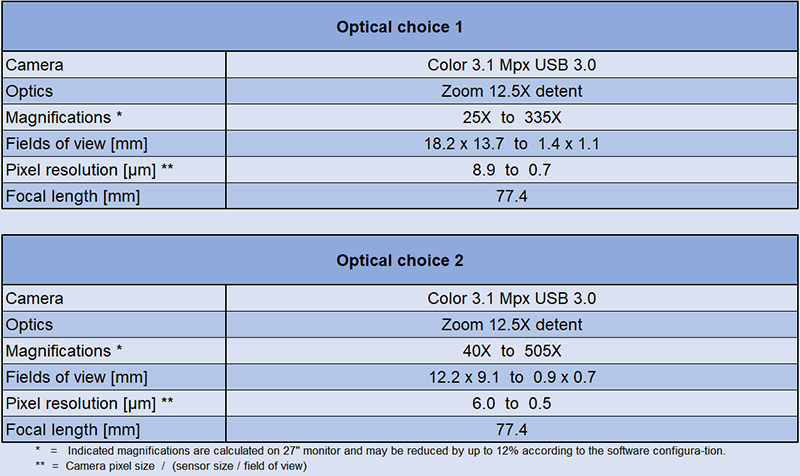

• 2 optical choices (see table below).
• 27" screen.
• LED illuminators.
• Computer with monitor.
• Measuring and comparison software.
• Glass chromium deposit calibration ruler.
• Dimensions (WxDxH): 590x640x750mm.
• Weight: 108kg.
