OpenMIC 50

Microscope measuring system


This analog system is an advantageous alternative for making measurements of small parts while requiring a very good image quality as well as a high quality from the X-Y table.

N°: MA 183-015-31

Specifications:

  • Granit base.
  • X-Y table MA 143-6, range 50 x 50mm.

    Mechanical precision 0.005mm / 50mm.

  • Sylvac digital micrometers.

    Reading resolution 0.001mm.

  • Rotating table 360° with T-slots.
  • Observation angle 120°.
  • 360° goniometer and 5' vernier.
  • Wide choice of reticles available.

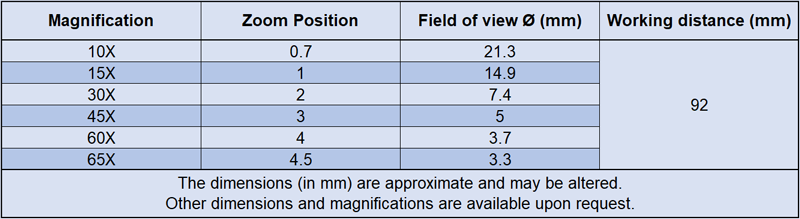

  • Magnification changes by rotation.
  • LED incident illuminator with 6 sectors.


Other reticles to choose from

R...





Concentricity measuring tool

MA 143-007-02





±15° rotating between centers

clamping bracket for T-slot

MA 143a





Crocodile-pliers for T-slot

MA 143b





Clamp with parallel jaws for T-slot

MA 143b-001





Collet holder for T-slot

MA 143bZ





V-block with spring clip

MA 143c





Crocodile-pliers on round support

MA 143-010-01





Clamp with parallel jaws on round support

MA 143-010-02





Collet holder on round support

MA 143-010-03





V-block with spring clip on round support

MA 143-010-04





Vice (capacity 15mm)

MA 143b-004





Adjustable vice (capacity 15mm)

MA 143b-005



2D layout

User's manual (goniometer)
