OptiMIC

Microscope


Microscopes are instruments for obtaining an enlarged image of a small object. They are equipped with a lens and an eyepiece that allows the object to be observed with the naked eye. Microscopes are used for centering, adjustment and measurement.

The main advantages are durability, reliability and low purchase cost.

N°: MA 121C-010

Specifications:

  • Real picture.
  • Observation angle 90°.
  • Wide choice of reticles available.

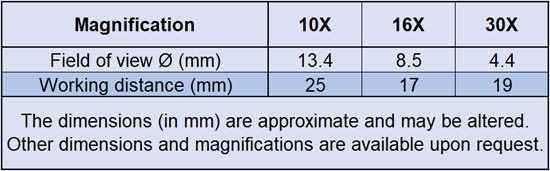

  • Standard magnification from 10X to 30X.
  • Available mounts M20x0.75 (in red), see options below.
  • Storage case available upon request.
  • Weight approx. 520g.


Other reticles to choose from

R...


Tapered mounts M20x0.75

70-0...


Cylindrical mounts M20x0.75

75-0...
