OpenSYS 50

Video measuring system


This entry-level system offers great ease of measurement. Its small size and weight makes it particularly practical in a workshop. Its simplicity of use is an asset for any operator.

N°: MA 183-035

Specifications:

  • Granit base.
  • Manual X-Y table MA 143-5, range 50 x 50 mm.

    Mechanical precision 0.010mm / 50mm.

  • Sylvac digital micrometers.

    Reading resolution 0.001mm.

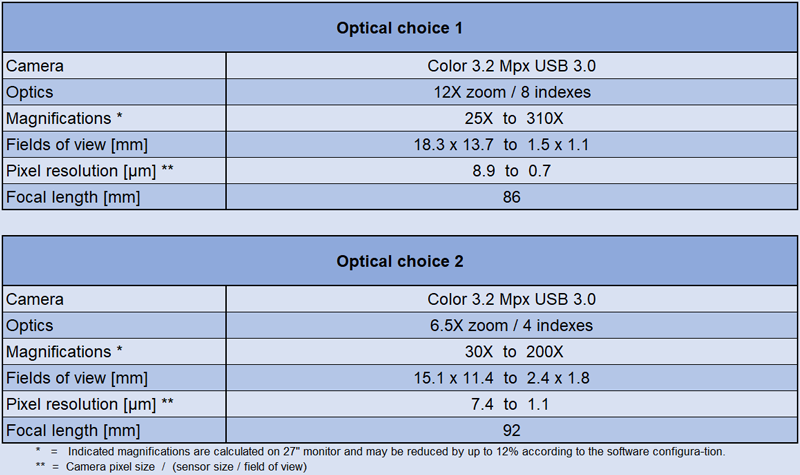

  • 2 optical choices (see table below).
  • Computer with 27" monitor.
  • LED illuminators.
  • Measuring and comparison software.
  • Dimensions (WxDxH): 460x460x530mm.
  • Weight: 19kg.

∙∙∙ Click here for more information or to request an offer ∙∙∙



Optical choice 1

adapter 0.67X

OptiVID "zoom 12X"





Optical choice 2

adapter 0.67X

OptiVID "zoom 6.5X"





Video software

VideoSYMBOL





Video software

VideoPIC





Documentation and measuring software

VideoDOC





Comparison, measuring and

documentation software

VideoRET PLUS





Measuring software

M3 FOV





Accessories and options for

50x50mm manual table



Flyer

2D layout

User's manual (system)

User's manual (optics)

User's Manual (illuminators)
