OptiVID "interchangeable lens"

Video optics, 90° angle


Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application. The angled optics allow quick adaptation to the machine. Various types of fasteners are available as standards.

24" "All In One" monitor (PC included in the screen).

N°: MA 730C-3

Specifications:

  • Great flexibility in the analysis of the image thanks to the wide choice of software.

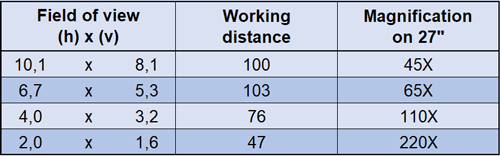

  • Different interchangeable lenses to choose from.
  • 1.3Mpx USB3.0 color camera.
  • Available mounts M20x0.75 (in red),

    see options below.

  • Weight 700g.



Comparing, measuring and

documentation software

VideoRET PLUS





Measuring software

VideoMES





Documentation and measuring software

VideoDOC





Video software

VideoPIC





Video software

VideoGEN





Video software

VideoSYMBOL





Measuring software

VideoDYN





LED incident illuminator

MA 114-029



LED transmitted illuminator

MA 212-92



Tapered mounts M20x0.75

70-0...



Cylindrical mounts M20x0.75

75-0...



Positioning on chuck mount

MA 110-2-040

Flyer

User's manual

2D layout

3D files (step)
