Video optics, zoom 10:1

Video optics are contactless measuring instruments. They allow you to view the edges of a part or to position the part without constraint. Marcel Aubert can offer you an even wider choice than the one represented in the downloadable documents below. A very wide range of software will allow you to adapt the symbols or measuring functions corresponding to your application. Zoom-optics allow you to quickly adapt the field of view to the required precision while guaranteeing a fixed focal length.

24" "All In One" monitor (PC included in the screen).

N°: MA 730-Z6-020

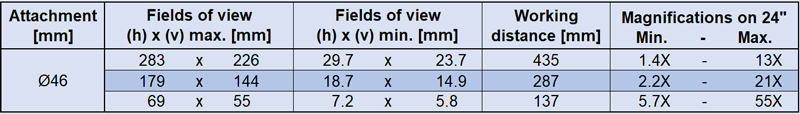

Specifications:

• Two video software to choose from.
• Manual zoom.
• 1.3Mpx USB3.0 color camera.
• Attachment Ø46mm.
• Weight 750g.
