Recto Verso 200

Video measuring system


This device is used to control simultaneously the two opposite faces of a product. The system guarantees a single reference for both top and bottom views, so you can control your products without support by defining your measurement references on the opposite side to those of the control. A video system equipped with two zoom-optics with color cameras allows you to control by comparing the profile of your part (video image) with a digitized drawing in DXF format. This workbench version integrates all controls on a front panel for optimum ergonomics. Moreover, the legs are adjustable in height from a sitting position of the operator to a standing position.

N°: MA 186-327-...

Specifications:

  • Granit base.
  • Manual X-Y table MA 146-1, range 200 x 100mm.

    Heidenhain measuring scales.

    Mechanical precision 0.003mm / 100mm.

  • Motorized granit precision columns.

    upper column range 180mm.

    lower column range 75mm.

    Mechanical precision 0.010mm / 100mm.

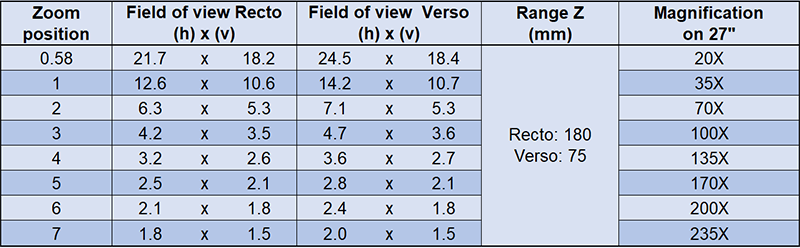

  • 12X zoom-optics with 8 indexes.
  • 27" screen.
  • 3.1 & 5.0 Mpx USB 3.0 color cameras.
  • LED illuminators.
  • Computer with monitor.
  • Measuring and comparison software.
  • Glass chromium deposit calibration ruler.



Comparison software, measurement

with machine axis management

VideoPLAN
