OptiMIC

Microscope


Microscopes are instruments for obtaining an enlarged image of a small object. They are equipped with a lens and an eyepiece that allows the object to be observed with the naked eye. Microscopes are used for centering, adjustment and measurement.

The main advantages are durability, reliability and low purchase cost.

N°: MA 118-020

Specifications:

  • Inverted picture.
  • Observation angle 110°.
  • Wide choice of reticles available.

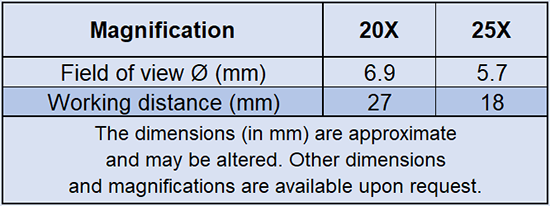

  • Standard magnification from 20X to 40X.
  • Available mounts M9x0.5 (in red), see options below.
  • Storage case available upon request.
  • Weight approx. 100g.


Other reticles to choose from

R...


Tapered mounts M9x0.5

70-0...


Cylindrical mounts M9x0.5

75-0...
