OptiMIC

Microscope


Microscopes are instruments for obtaining an enlarged image of a small object. They are equipped with a lens and an eyepiece that allows the object to be observed with the naked eye. Microscopes are used for centering, adjustment and measurement.

The main advantages are durability, reliability and low purchase cost.

N°: MA 112-2E

Specifications:

  • Real image.
  • Observation angle 120°.
  • Built-in lighting.
  • Wide choice of reticles available.
  • Different interchangeable lenses to choose from.

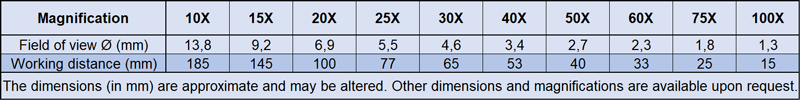

  • Standard magnification from 10X to 100X.
  • Available mounts M20x0.75 (in red), see options below.
  • Storage case available upon request.
  • Weight approx. 290g.


Reticle (delivered with microscope)

R 1



Power supply 100-240V / 1A

MA 355-025


Other reticles to choose from

R...


Goniometer MA 129

Variant "G"



Power supply with intensity regulator

MA 355-019



LED incident Illuminators

MA 212-95


Tapered mounts M20x0.75

70-0...


Cylindrical mounts M20x0.75

75-0...



Positioning on chuck mount

MA 110-2-040
