Centering device

This device, developed for the tailstock of the Schaublin 102 lath, can be used to adjust the tools.

N°: MA 110-006-01

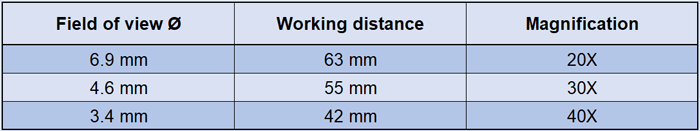

Specifications:

• Morse 2 taper.
• XY table MA 110-2, range 20 x 20 mm.

  Mechanical precision 0.001mm / 20mm.

• Digital micrometers Sylvac.

  Reading resolution 0.001mm.

• Viewing angle 90°.
• Wide choice of reticles available.
• Built-in LED lighting.
